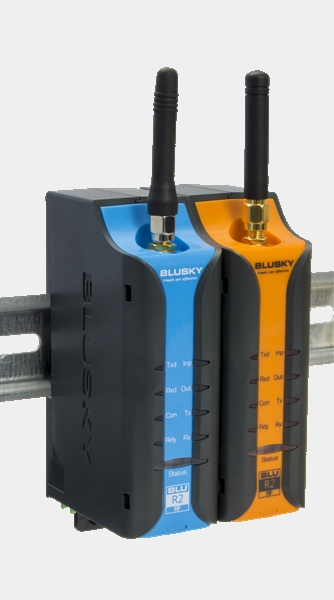

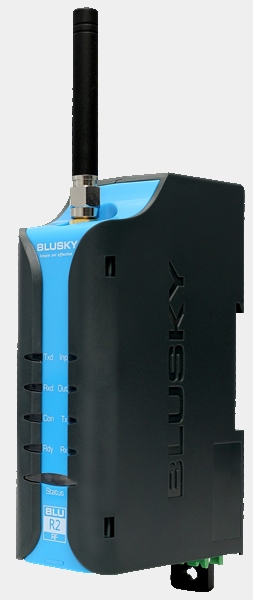

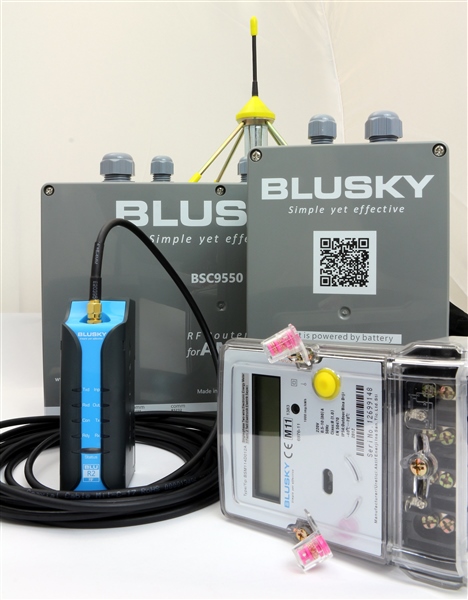

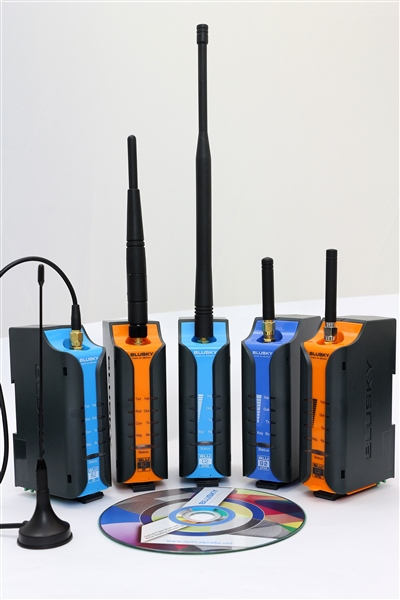

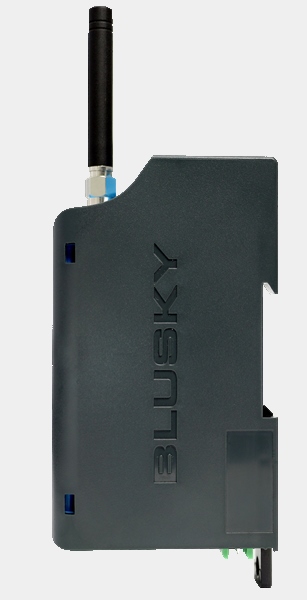

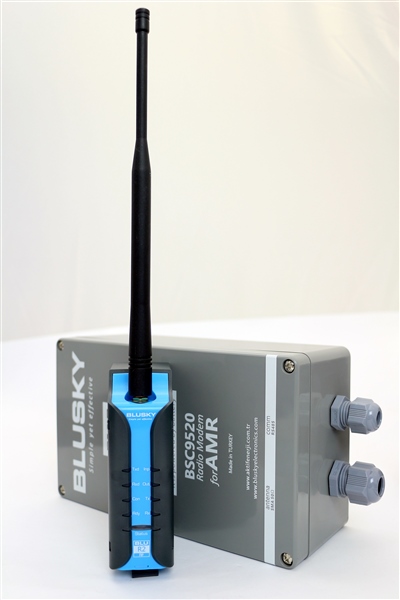

BSC9510 ISM BAND 868 MHz RF MODEM

We, as Aktif Enerji, provide products operating within ISM Band 868 Mhz. Both 25mW and 500mW options are available for that modem. Our products are designed and produced according to BTK and KET regulations and they are also compliance with standards of EN60950-1, EN301 489-1, EN301 489-3, EN300 220-2. These RF modem are produced in order to provide solutions for Smart Grid technologies and not only for Electricity meters , these products are also implemented for project corresponding with water meters and natural gas meters. Our product working with transparent communication structure is one of the most important alternative for industry of M2M solutions. According to different industry demands, two options are available, these are model operating with mains power and model operating with battery. These modems are connected via RS485 cable to device. In open field, device have 1-10 km communication range. The modem provides different RF links in the same project by choosing 10-60 RF channels. Development on RF modems family has been continued by our R&D department currently. New upcoming development is on mesh network topology support.

Modem Specifications

• ISM Band 868 MHz
• Operating band G,G1, G2, G3 and G4
• Special solutions for AMI/AMR systems
• RS 485 port
• Star Network Technology
• Configuration and Firmware update via USB port
• Remote configuration and firmware update via RF link
• Adjustable output power
• Connector of SMA Male antenna
• Small dimensions

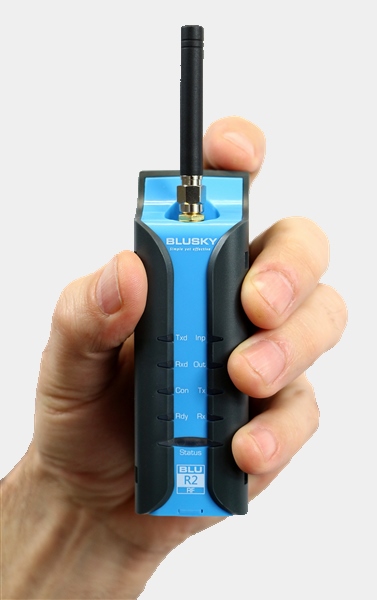

• Situation indicator led
• 80-265 V supply voltage or 3.7 V battery(optional)
• Repeater Mod
• DIN Rail 35mm mounting

Power Supply                           : 85-265 VAC ( 3-36V Opt.)
MAX. RF Transmit Power        : 25mW - 500mW
RF Receiver Sensitivity            : -109 dBm - 117 dBm
RF BAND Range                        :  863mhz - 870mhz
Max. Number of Channels     : 60 Channels
Modulation Type                      :  2GFSK
Running Mode                         : Transp., Add. Mode,Repeater Mode
Topology                                    : STAR Topology
Data Communication Distance    : 2.000 - 10.000 Meters
Communication Ports              : Half Duplex RS-485 Port
RF Output Consumption          : 80mA - 450mA
RF Receive Consumption         : 50mA
Stand By Consumption            : 10uA
Sleeping Mode Consumption  : 5uA
Antenna Characteristics           : SMA 50 Ohm
RF Link Communication Baud Rate     : 4800 - 9600 Baud
Communication Port Baud Rate          : 300 - 115.200 Baud 7E1 / 8N1
Communication  Protocols      : IEC62056-21,DLMS COSEM,MODBUS RTU
PC Communication Port           : USB 2.0
Working Conditions                   : -30C , +80C
Mechanical Specs.                      : IP51/ABS
Configuration Update                : USB 2.0 / RF Link
Firmware Update                       : USB 2.0 / RF Link
Mounting                                     : 35mm DIN RAIL
