READYCITY Energy Management and Monitoring Software

READYCITY that has been developed as web based, is software supporting unlimited meters and unlimited users registration. It is composed of 5 main layers; meter reading, database, data verification, WEB server and user interface. Unlimited concept mentioned above turns into practice from theory by combination of huge reading speed and data sharing come from perfect integration of READYCITY and BLUSKY Smart Modems.
That all modems are read at the same time, is easily realised by users thanks to multithread structure of software. Both reading one meter via only one modem or reading more than 1 meter via only one modem are supported by READYCITY.

All meters supporting IEC 62056-21 and DLMS/COSEM protocols can be read via READYCITY. Users can categorize information how users would like to. The different type of information coming from different meters undergoes process of parsing in order to turn all kind of date into one type of data then write down database. In order to support new meters type, adding their drivers is just needed.

Multi Layer Structure

It is a modular and strong AMR/AMI software formed of 5 basic layers. The layers are as database, data management, data collection, web server and application (web + desktop). The software can run both entirely on one server or computer and each layer can run on another server. These layers are designed to be totally modular. Modules can be added or removed according to the project’s requirements. Thus the software can be
upgraded due to future market needs.

General Features

The software has extendable multiple language support. By means of this architecture; all menus,
units, explanations, messages, outputs and reports can be edited due to all languages besides English. It has
improved message and help menus, thus it is quite user friendly. With its cloud supporting topology, BLUSKY servers would provide even more economic solutions.

• Ability to add new type of meters to the software, by means of driver architecture
• Ability to add or change current transformer,voltage transformer or meter factor
• Ability to run TCP/IP integraded within different servers by means of 5 layer structure
• Ability to add and group unlimited meters

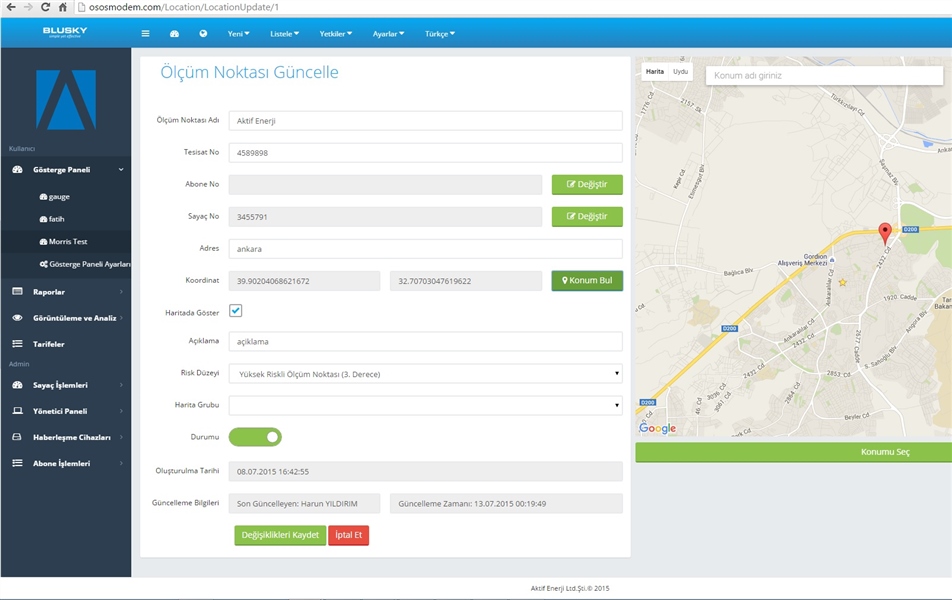

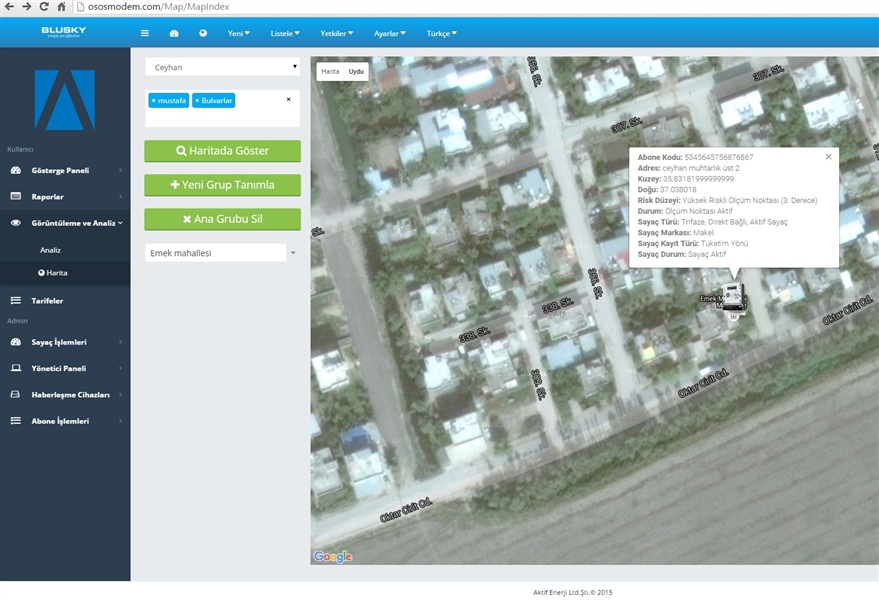

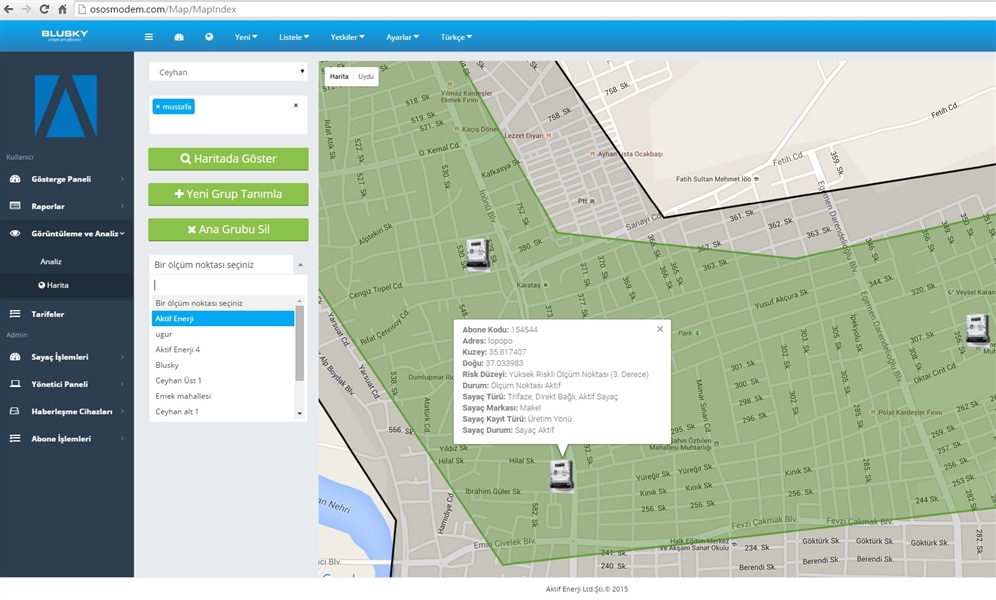

• Swift visual access to meters, by means of mapping and scheme features
• Online access and ability to add meters

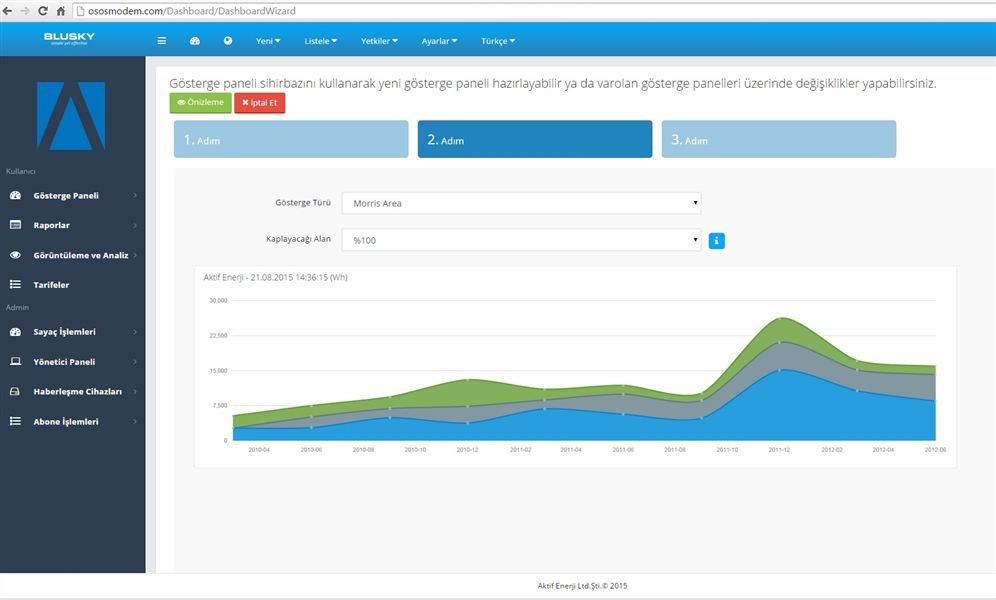

• Hourly, daily, weekly, monthly, annually reporting ability based on index and load profile values by
  means of analysis through strong graphic visuals
• Ability to provide data for different programs by means of Data Export
• Safe data transfer as encrypted data
• Compatibility with all transparent modems
• Reading of instantaneous values and ability to send data to various SCADA systems
• Ability to run with Client Mode modems
• Ability to integrate into SCADA systems with relevant modules
• Ability to add limitless meters and users
• Ability to read historical values ,end of billing, maximum demand of previous months
• Alert feature. Due to this one, it can raise alarms in case any value of the meter exceeds the limits
• Easy integration with database systems such as MySQL, MS SQL and ORACLE and precise data recording by means of Data Verification Module

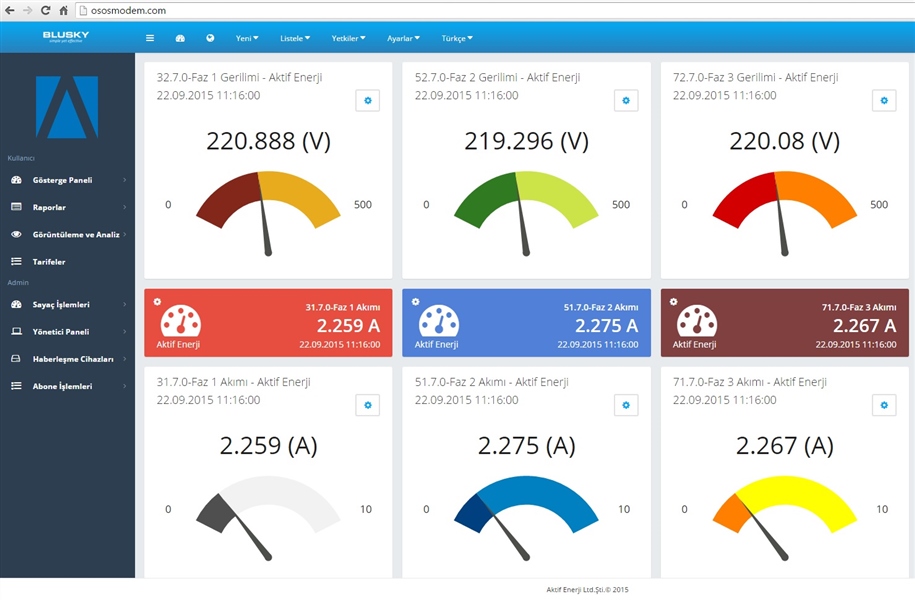

• Ability to form monitoring panels by drag-and-drop or different positioning, showing the selected visual on another screen

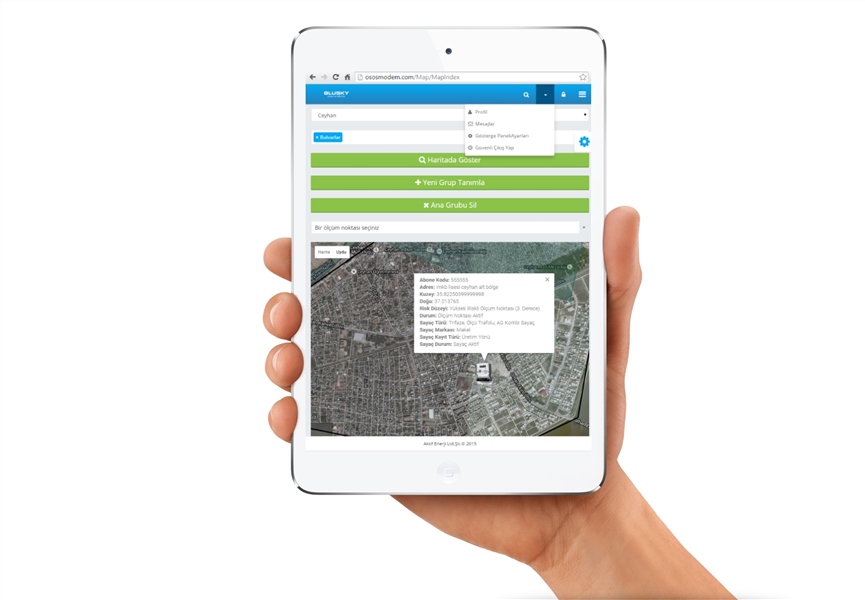

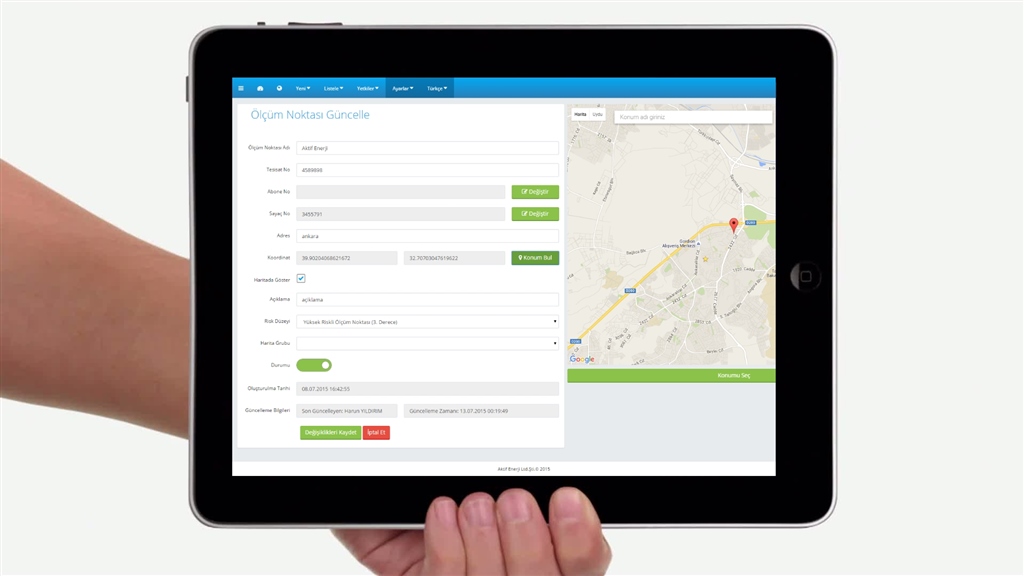

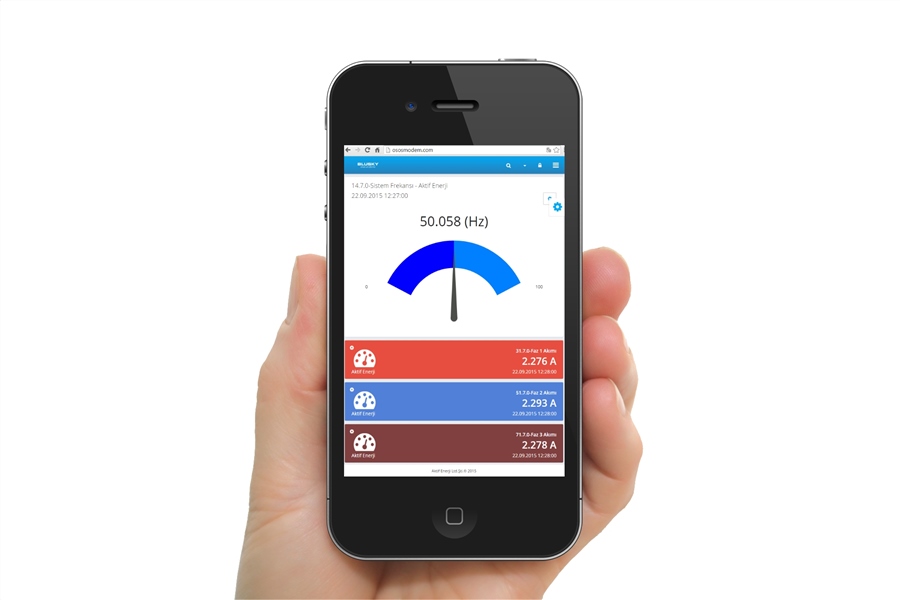

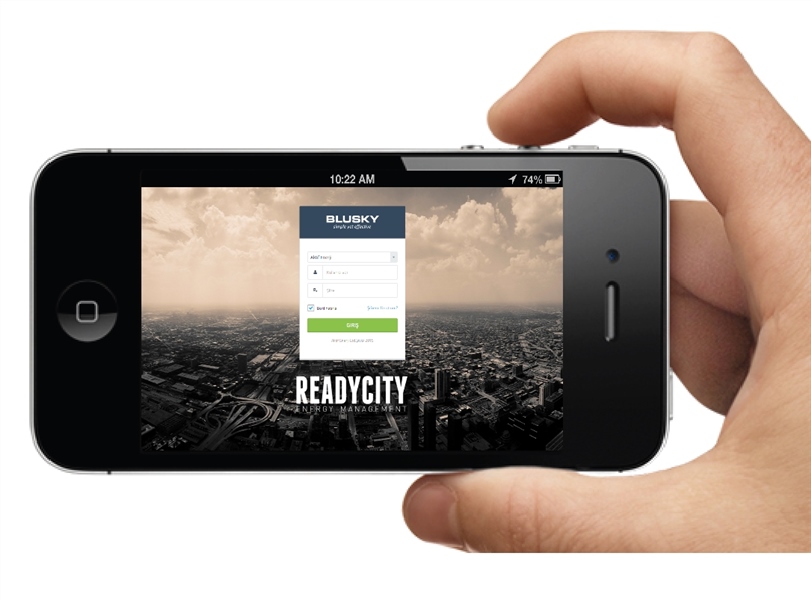

• It can be use on tablets and smart phones as PC.

ReadyCITY Energy Management Software Document ↓Download : ReadyCITY Energy Management Software Document
